產品描述

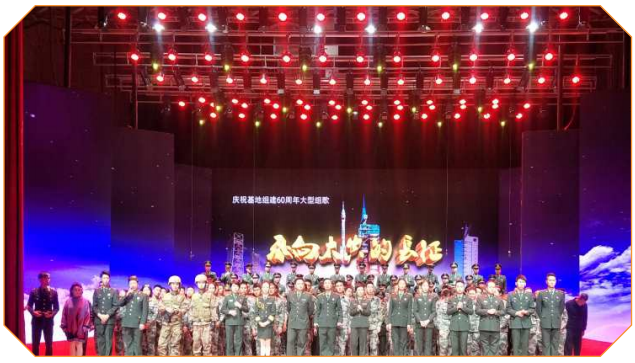

效果圖

EFFECT

技術參數

SPECIFICATIONS

型 號：VRJ-600DN

名 稱：LED螺紋聚光燈（電動調焦）

額定電壓：AC100-240V,50/60Hz

功 率：600W

光 源：節能LED模組一顆550W 白光

色 溫：3200K/4200K/5600K可選

光 學：螺紋鏡片

顯色指數：≥Ra92,也可定制更高顯色指數≤Ra98

控制模式：DMX512,主從機模式,單機模式,手動模式

通 道：2/3/4CH通道選擇

調 光：線性0—100%

調焦角度：電動調節15--60度

散 熱：內置集成散熱鋁片加銅管,智能靜音風機輔助散熱

防護等級：IP20

燈體尺寸：623*226*248mm

燈體重量：14.5KG

包裝規格：紙箱一只裝

技術特點：*信號保護功能，防雷擊、防閃電

*具有感應溫度保護裝置

*最新防塵防眩光技術

*具有高效散熱控制系統

*全新綜合調控系統

*產品通過CE、ROHS認證

*符合GB7000.201-2008和GB7000.1-2007國家檢驗標準

Model No.: VRJ-600DN

Name: LED thread spotlight (electric focusing)

Rated voltage: ac100-240v, 50/60hz

Power: 600 w

Light source: energy-saving LED module with a 550W

white light

Color temperature: 3200K/4200K/5600K optional

Optics: threaded lenses

Color rendering index: ≥Ra92, or customized higher color

rendering index ≤Ra98

Control mode: DMX512, master slave mode, stand-alone

mode, manual mode

Channel: 2/3/4CH channel selection

Dimming: linear 0-100%

Focus Angle: electric adjustment 15- 60 degrees

Heat dissipation: built-in integrated heat dissipation

aluminum plate plus copper tube,

intelligent quiet fan assisted heat

dissipation

Protection level: IP20

Lamp body size: 623*226*248mm

Lamp weight: 14.5kg

Packing specification: one carton

Technical features:

* signal protection function, anti - lightning, anti - lightning

* with induction temperature protection device

* latest dust and glare protection technology

* with efficient heat dissipation control system

* new integrated control system

* products have passed CE and ROHS certification

* comply with gb7000.201-2008 and gb7000.1-2007

national inspection standards
