產品描述

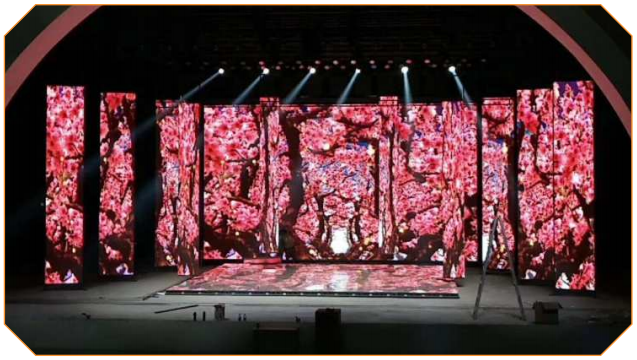

效果圖

EFFECT

燈體尺寸

DIMENSION

型 號：VRC-600DN

名 稱：LED電動變焦成像燈

額定電壓：AC100V-240V,50/60Hz

功 率：600W

光 源：節能LED模組一顆550W

色 溫：3200K/4200K/5600K可選

顯色指數：≥Ra92,也可定制更高顯色指數≤98

光 學：4組膠合鏡玻璃光學,可加LOGO片

控制模式：DMX512,主從機模式,單機模式,手動模式

通 道：2/4/6CH選擇

調 光：線性0—100%

頻 閃：1-25次/秒

調焦角度：電動9-45度,可加光圈調節最小2度。

散 熱：內置集成散熱鋁片加銅管,智能靜音風機輔助散熱

防護等級：IP20

燈體尺寸：725*370*200mm

燈體重量：15.5KG

包裝規格：紙箱一只裝

技術特點：*信號保護功能，防雷擊、防閃電

*具有感應溫度保護裝置

*最新技術光學系統

*具有高效散熱控制系統

*全新綜合調控系統

*產品通過CE、ROHS認證

*符合GB7000.201-2008和GB7000.1-2007國家檢驗標準

Model No.: VRC-600DN

Name: LED electric zoom profile spot light

Rated voltage: ac100v-240v, 50/60hz

Power: 600 w

Light source: one energy-saving LED module is 550W

Color temperature: 3200K/4200K/5600K optional

Color rendering index: ≥Ra92, or customized higher color

rendering index ≤98

Optics: 4 sets of gluing mirror glass optics,

can add LOGO plate

Control mode: DMX512, master slave mode, stand-alone

mode, manual mode

Channel: 2/4/6CH option

Dimming: linear 0-100%

Strobe: 1-25 times/SEC

Focus Angle: electric 9-45?, can add aperture to

adjust the minimum 2?

Heat dissipation: built-in integrated heat dissipation

aluminum plate plus copper tube,

intelligent quiet fan assisted heat dissipation

Protection level: IP20

Lamp body size: 725*370*200mm

Lamp weight: 15.5KG

Packing specification: one carton

Technical features:

* signal protection function, anti - lightning, anti - lightning

* with induction temperature protection device

* latest technology optical system

* with efficient heat dissipation control system

* new integrated control system

* products have passed CE and ROHS certification

* comply with gb7000.201-2008 and gb7000.1-2007

national inspection standards
